Electronic Peripheral Water Pressure Booster Set with Brio Tank – 750W 1.0Hp PKm 80 Pedrollo
CODE: 303264
BRAND: Pedrollo
Ηλεκτρονικό Πιεστικό Συγκρότημα Νερού Περιφερειακό με Brio Tank 750W - 1,0Hp PKm 80 Pedrollo
ΠΙΣΩ ΣΤΗΝ ΛΙΣΤΑElectronic Pressure Systems

Electronic Peripheral Water Pressure Booster Set with Brio Tank – 750W 1.0Hp PKm 80 Pedrollo

BRAND: Pedrollo

Pedrollo
CODE: 303264

Available 1 - 3 days

Add to Wishlist Already in wishlist
Please select available color and size to add the product to wishlist
Free courier shipping for orders over 80€ and under 15kg. Stock availability refers to Allwater's warehouse and not the physical store.
Already In Cart
  • FOR ORDERS OVER 100€ you can have up to 6 installments with card
  • TEL. ORDERS (+30) 210 3219329 210 3216463
  • DESCRIPTION

    A fully automatic water pressure system with a peripheral pump and an electronic pump control unit. Ideal for supplying water to homes without access to the city water supply or where the existing network lacks sufficient pressure. Also suitable for irrigation, garden watering, small industrial installations, and anywhere water pressure needs to be boosted.



    How the Electronic Controller Works:

    The electronic controller is mounted directly on the pump (single-phase or three-phase), in any orientation (horizontal or vertical depending on flow direction). It automates pump operation—starting when pressure drops (e.g., tap opens) and stopping when the maximum pressure of the pump is reached (e.g., tap closes). It is suitable for pumps from 0.5Hp to 2Hp.

    The operation of the pump is managed by the Brio Tank controller. It starts the pump when pressure falls to the lower threshold and stops it when pressure returns to the upper limit. The motor features copper windings in a compact and easy-to-use design.



    Dry Run Protection:

    Automatically stops the pump if it detects that the water source (tank, well, etc.) is empty, preventing damage from dry running.



    Advantages of the Brio Tank Controller:

    • Prevents frequent start/stop cycles during low water demand or small leaks thanks to its built-in 0.4L water reserve
    • Automatic restart after dry-run shutdown with a simple button press
    • Overpressure protection – stops the pump when a predefined pressure is exceeded
    • Moisture-resistant electronic circuit enclosed in a sealed housing
    • No maintenance required



    Technical Specifications:

    • Pump Model: PKm 80
    • Power: 1.0 HP – 750 W
    • Inlet/Outlet: 1" x 1"
    • Pump Material: Cast iron
    • Impeller: Brass
    • Voltage: 220V / 50Hz
    • Maximum Flow Rate: 3000 L/h
    • Maximum Head (Pressure): 70 m
    •
    • Suction Depth: 8 m
    • Maximum Pressure: 7.0 bar
    • Liquid Temperature: Up to 60°C
    • Product Code: 100105



    Includes:

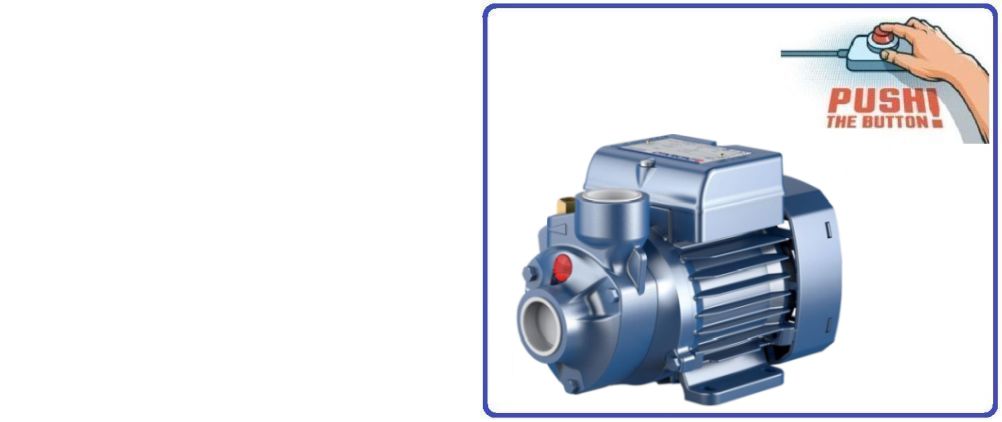

    • Single-Phase Peripheral Pump Pedrollo PKm 80 – 1.0Hp - Click on the image to view more features.

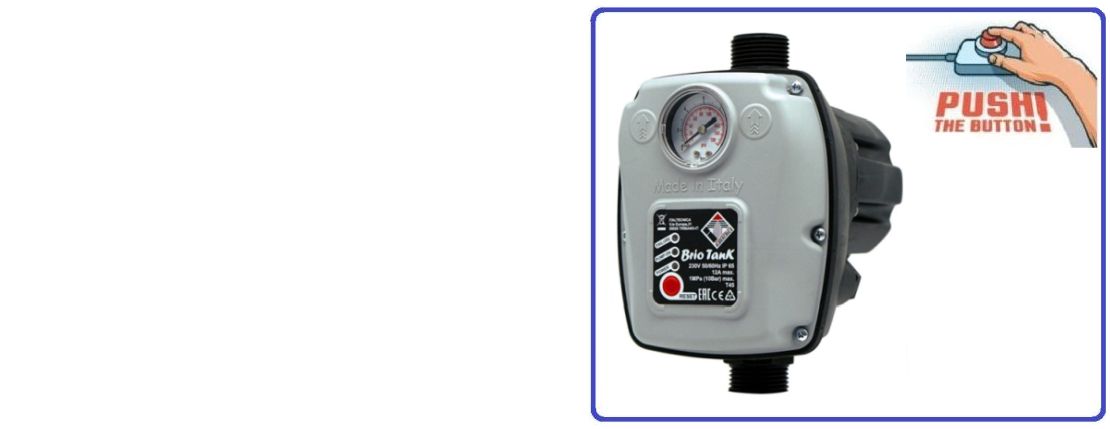

    • Brio Tank Electronic Pump Control Unit - Click on the image to view more features.






    The use of an expansion tank in combination with the electronic pump controller is recommended for the following reasons:

    • Prevents frequent pump starts, extending the life of the motor
    • Stabilizes water flow and eliminates pressure fluctuations in the network
    • Protects hydraulic components of the pump and system from water hammer
    • Prevents air entrapment within the system
    • Reduces electricity consumption by ensuring smoother and more efficient pump operation



    To view potable water expansion tanks, click on the image below:
