JET Electronic Water Booster Set with Presflo Vario 750W – 1.0Hp JETm 2CX Pedrollo

A complete automatic booster system with a self-priming pump and an electronic pump control device.
Suitable for water supply in homes without access to a municipal network or where the water pressure is insufficient. Ideal for irrigation, garden watering, small industrial installations, and any other application requiring water pressure boosting.

The electronic water controller is a device mounted on the pump (single-phase or three-phase), in any position—vertical or horizontal—depending on the flow. It automates the pump’s start when pressure drops (e.g., a tap is opened) and stops it when the flow ceases at the pump's maximum pressure (e.g., tap is closed). These controllers are capable of operating pumps from 0.5Hp to 2Hp.

The operation of the pump is managed by the Presflo Vario controller. The pump starts when the pressure drops to the lower threshold of the pressure switch and stops when the pressure rises back to the upper threshold. The motor features a copper winding, with a compact and user-friendly design.

JET self-priming pumps can lift clean water mixed with air. The maximum suction height is approximately 8 meters.
Recommended uses: domestic water supply and small-scale irrigation (gardens), as well as water distribution.

The JET water pump is a 1.0HP single-phase self-priming cast iron pump.
It is designed to transfer clean water or other liquids similar to water in physical and chemical properties. Suitable for drawing water from wells, garden spraying, pressure boosting, irrigation, booster systems, etc. Ideal for residential water supply and gardening applications. Recommended only for clean water, free of solid particles or corrosive substances.

Manufactured using high-quality materials: cast iron pump body, rust-resistant treatment, plastic impeller (Noryl), and stainless steel shaft AISI 304.

Dry-Run Protection:

The system will automatically stop the pump if it detects that the tank or well is empty to prevent it from running dry and burning out.

Advantages of the Presflo Vario Electronic Controller:

• Automates start and stop of single-phase pumps up to 2HP

• Fully replaces traditional automation systems consisting of pressure switch and expansion tank

• Provides dry-run protection

• Protects against humidity thanks to the sealed electronic circuit enclosure

Technical Specifications:

• Model: JET – JETm 2CX

• Power: 1.0 HP – 750 Watt

• Inlet/Outlet: 1" x 1"

• Pump Body: Cast Iron

• Impeller: Plastic (Noryl)

• Shaft: Stainless Steel AISI 304

• Voltage: 220V / 50Hz

• Maximum Flow Rate: 4200 L/h

• Maximum Head: 55 m

• Maximum Suction Depth: 9 m

• Maximum Pressure: 5.5 bar

• Water Temperature: max 40°C

• Product Code: 108875

Includes:

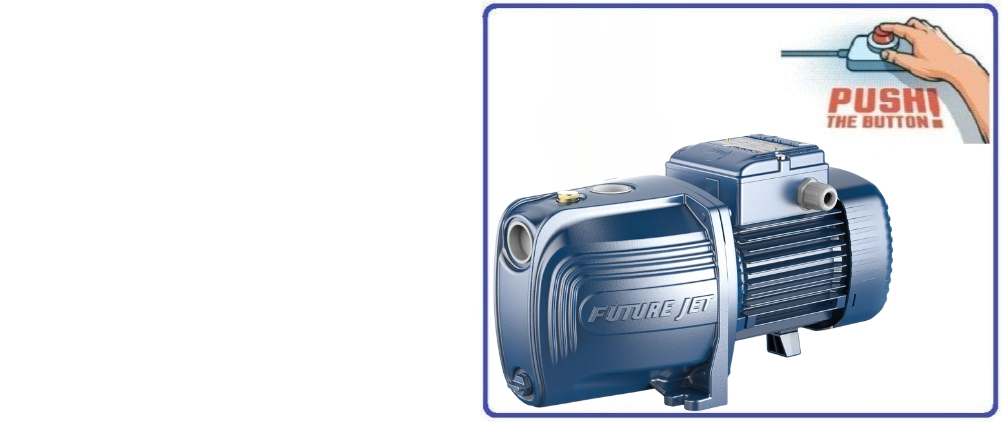

• Self-Priming Single-Phase Water Pump JET Pedrollo JETm 2CX 1.0Hp - Click on the image to see more specifications.

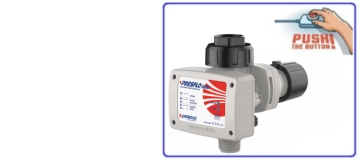

• Presflo Vario Pump Control Unit - Click on the image to view more specifications.

The use of an expansion tank in combination with the electronic pump controller is recommended for the following reasons:

• Prevents frequent pump starts, which prolongs the pump’s lifespan

• Stabilizes water flow and eliminates pressure fluctuations in the network

• Protects hydraulic components of both the pump and the installation from water hammer

• Prevents air entrapment in the system, ensuring consistent water delivery

• Reduces electricity consumption by allowing the pump to operate more efficiently

This combination enhances the overall performance, durability, and energy efficiency of the water system.

To view water expansion tanks, click on the image below:
