Fully Automatic Water Booster Set with Peripheral Pump and Electronic Pump Controller

Fully automatic booster set with a peripheral pump and electronic pump control device. Suitable for water supply in homes without access to a municipal network or where mains pressure is insufficient. Ideal for irrigation, garden watering, small industrial installations, and any application requiring water pressure enhancement.

An Electronic Water Controller is a device installed on the pump (single-phase or three-phase) in any position, vertical or horizontal, depending on the flow. It automates the pump start-up after a drop in pressure (opening a tap) and stops it when the flow is interrupted at the pump's maximum pressure level (closing a tap). These controllers are capable of managing pumps from 0.5Hp to 2Hp.

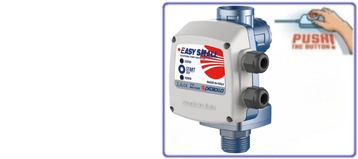

Pump operation is determined by the Easy Small electronic control device by Pedrollo. The pump starts when pressure drops to the lower limit and stops when pressure returns to the upper limit. The motor features a copper winding and a compact, user-friendly design.

Dry-Run Protection:

This feature automatically stops the pump's operation as soon as it detects that the water source (tank, well, etc.) is empty. By preventing the pump from drawing air, it protects the motor from burning out.

Advantages of the Easy Small Electronic Controller:

Automates start and stop functions for single-phase electric pumps up to 2HP.

Fully replaces the traditional automation system (pressure switch and expansion tank).

Integrated dry-run protection.

Enhanced moisture protection thanks to the electronic circuit being housed in an airtight enclosure.

Technical Specifications:

Type: PKm 65

Power: 0.75 HP - 550 Watt

Inlet/Outlet: 1" x 1"

Pump Body: Cast Iron

Impeller: Brass

Voltage: 220V / 50Hz
