How to choose the appropriate connection accessories for automatic watering in my garden.

How to choose the appropriate connection accessories for automatic watering in my garden.

Automatic irrigation fittings are manufactured from high-quality polypropylene (PP), in accordance with international standards and specifications. A complete range of connection fittings is available for building a reliable irrigation system, including plug connectors, plug elbows, plug tees, end plugs, double outlet ends, lock connectors, lock elbows, lock tees, lock end fittings, valves, nipples, reducers and more.

Plug-type fittings are suitable for pipes with diameters of Φ12, Φ16, Φ20, Φ25 and Φ32. They are designed to firmly grip the irrigation pipe, minimizing the risk of disconnection due to water pressure. The maximum operating pressure is up to 6 bar, and they feature UV protection for resistance to sunlight exposure.

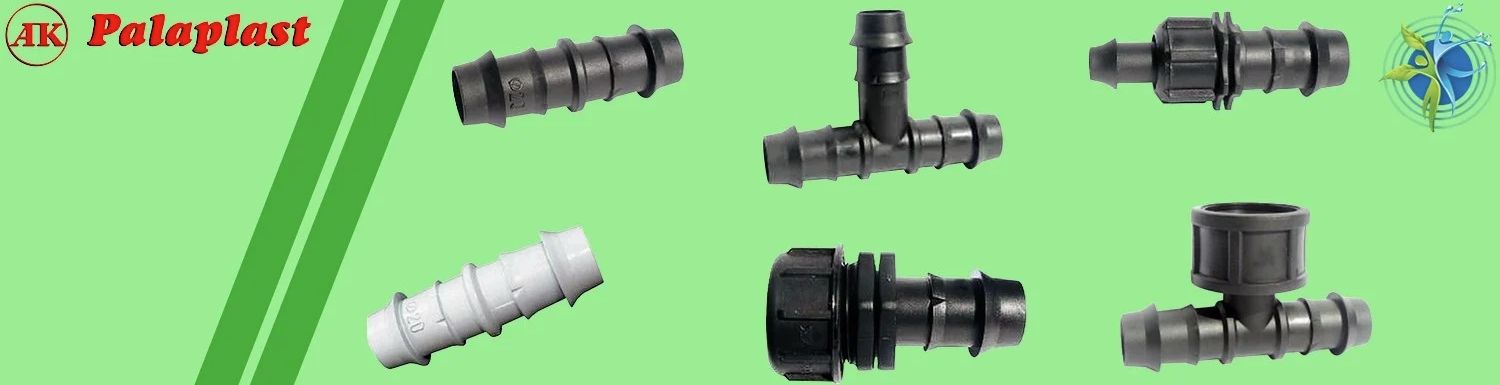

Plug-type irrigation fittings for connecting irrigation hoses

Lock-type fittings are suitable for pipes with diameters of Φ16, Φ20, Φ25 and Φ32. They consist of a plug connector combined with a locking nut that secures the pipe in place. This locking system ensures a fully secure connection without leaks. The maximum operating pressure is 6 bar, with built-in UV protection.

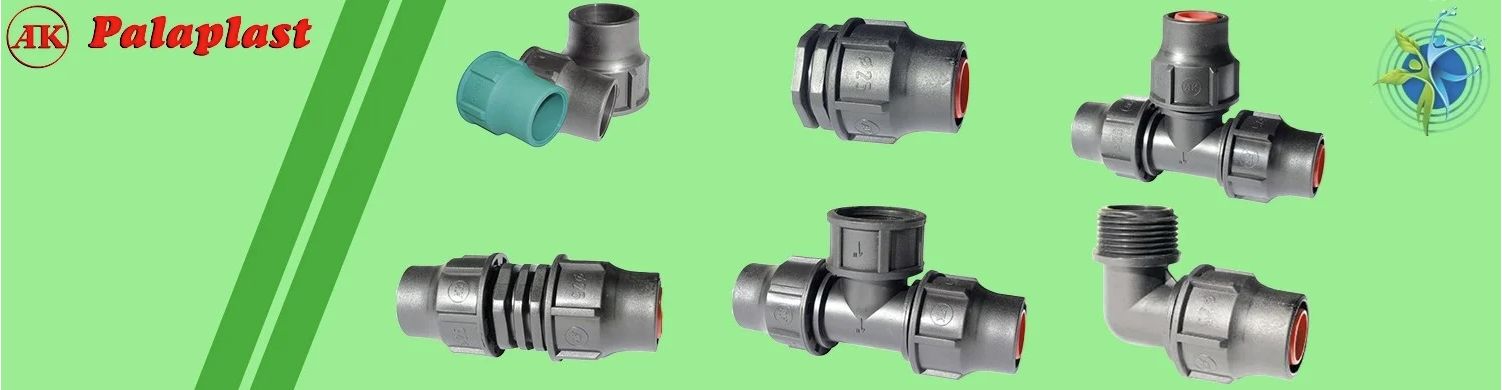

Lock-type irrigation fittings for secure irrigation hose connections

To install a dripper, take-off, tee or any other micro fitting on an irrigation pipe, a hole must be created. This hole should be made using a dedicated tool known as a punch. Using any other method may result in improper installation and water loss. Punch tools are available in different sizes and color codes: 2mm, 3mm (most common), 4mm, 6mm, 8mm and 10mm.

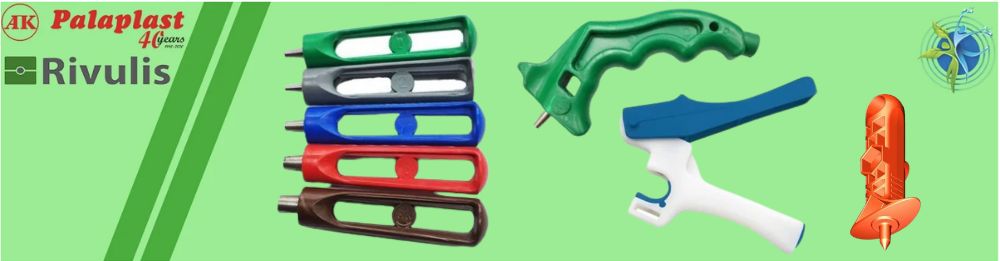

Punch tool for making holes in irrigation pipes for automatic watering

Additional connection fittings are essential for any irrigation installation, providing flexible solutions for all possible connection requirements and making system installation and maintenance easier.

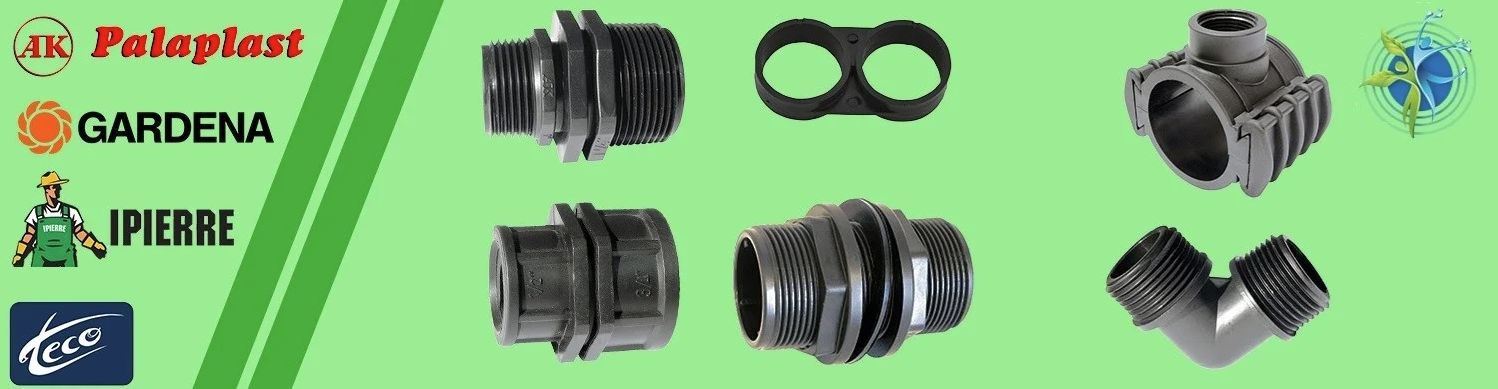

Body-only connection fittings for secure irrigation hose connections

Allwater offers a complete range of irrigation connection fittings, manufactured from high-quality materials in collaboration with one of the leading irrigation manufacturers, Palaplast. Proper connection of fittings ensures optimal system performance and maximum water efficiency without waste.
